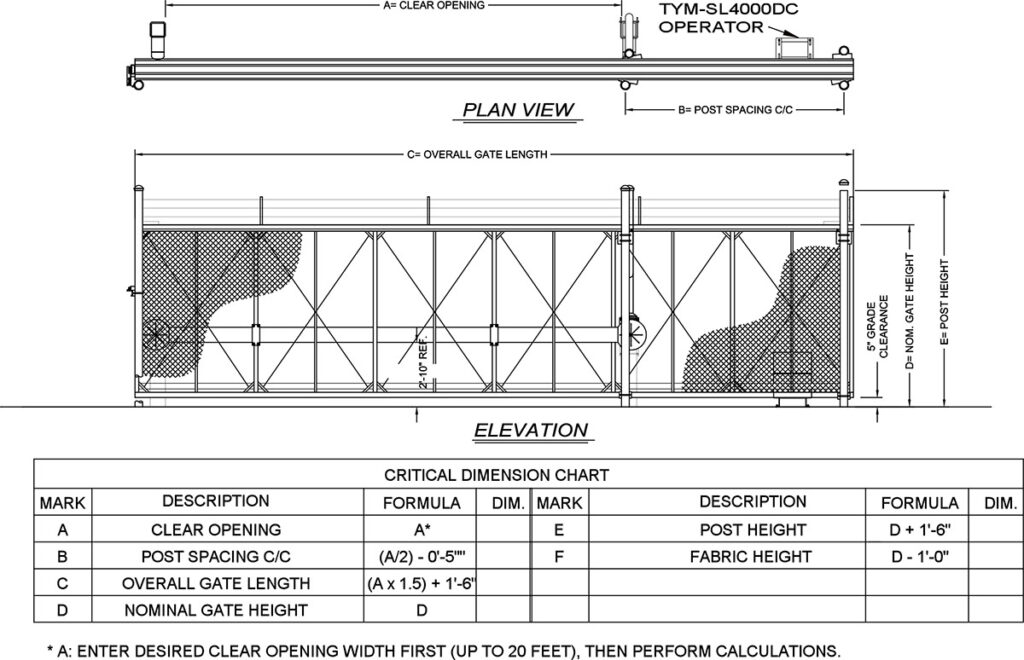

TCG-4 (M30/K4) Crash Rated Cantilever Slide Gate & TYM-SL4000 Operator System

Product Notes

• Closes single clear opening widths up to 20’.
• For larger clear opening widths contact Tymetal.  Custom options are available.
• The TCG-4 is available in a manually operated configuration as well as automated versions having speeds up to 3’ per second.

Product Summary

The TCG-4 Cantilever Slide Gate is ASTM F2656 M30-P1* certified (equivalent to U.S. Department of State K4).  Will stop a 15,000 pound vehicle traveling at 30 mph within 1 meter.  Depending on gate size and weight the TCG-4 utilizes the aluminum Heavy Duty or Structural Cantilever Slide Gate design that allows the user flexibility to match almost any existing fence design.

Features & Benefits

• Aluminum cantilever design integrated with the TCG-4 crash beam system eliminates the concern for rust and reduces maintenance while delivering M30-P1* crash protection.
• UL 325 and 991 compliant with ETL listing, UL Classes I, II, III and IV.
• Battery backup system with two 7-AH 12VDC batteries is standard.
• Speed: 12 inches per second.
• Maximum gate panel weight: 4,000 pounds.
