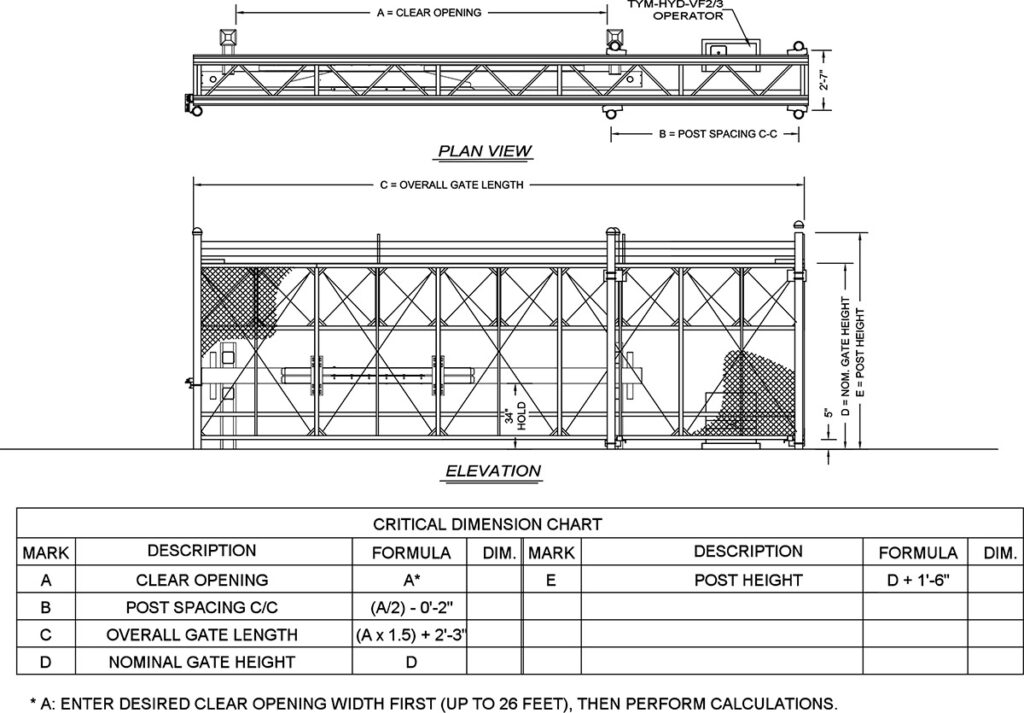

TCGR-12 (M50/K12) Crash Rated Box Frame Cantilever Slide Gate & TYM-HYD-VF2/3 Operator System
Product Notes
- Closes single clear opening widths up to 26 feet.
- For larger clear opening widths contact Tymetal. Custom options are available.
- The TCGR-12 is available in a manually operated configuration as well as automated versions having speeds up to 3’ per second.
Product Summary
The TCGR-12 Box Frame Cantilever Slide Gate is ASTM F2656 M50-P2* certified (equivalent to U.S. Department of State K12). Will stop a 15,000 pound vehicle traveling at 50 mph within 1 to 7 meters. The TCGR-12 utilizes a robust box frame design that allows the user flexibility to match almost any fence line while providing M50/K12 crash rated protection for those openings.
Technical Data Sheet
Chain Link CAD
Chain Link PDF
Chain Link Specs Features & Benefits
- Aluminum box frame cantilever design integrated with the TCGR-12 crash beam provides structural integrity over larger openings while eliminating concern for rust and delivering M50-P2* crash protection.
- Listed for use in UL 325 Usage Classes III and IV.
- Variable frequency drive provides soft start and stop.
- Speed: 2.2 or 3.0 feet per second with Emergency Fast Operation (EFO) feature.
- RS485 to Ethernet for network connections.
Frequently Asked Questions
TYMETAL has been in the perimeter security solutions market since 1985. With more than three decades of experience designing, manufacturing and installing crash rated barriers, we have encountered many questions along the way. A few of the more common questions below. If you don’t find the answers you’re looking for, feel free to contact us at 888-978-4283 or online.
What distinguishes the crash-rated TCGR-12 from alternative crash-rated cantilever slide gates?
The TCGR-12 utilizes a box frame design, allowing it to span single clear opening widths up to 26 feet. It was crash tested at 26 feet (clear opening width), which is unusually large for a test. Most companies elect to test smaller sizes, as it may be easier to achieve a better result. The frame structure consists of two panels trussed together to form the 1’-8” wide gate panel. The engineered structure allows for a longer and taller cantilever style slide gate, as well as presenting an intimidating appearance. As with all TYMETAL cantilever slide gates, ground tracks, ground wheels and overhead support not needed.
What crash rating/performance level does the TCGR-12 achieve?
The TCGR-12 Cantilever Slide Gate has been crash tested in accordance with ASTM F2656-15-M50-P2, and certified by an accredited independent testing facility. It can stop a 15,000 lb. vehicle traveling at 50 mph within 1 to 7 meters upon impact.
What drive/operator systems and control options are compatible with the TCGR-12?
The TCGR-12 can be operated manually or equipped with an electromechanical chain drive or hydraulic rail drive operator. While typical speed is 1 foot per second, speeds up to 3 feet per second are available. Features include soft start/stop, battery backup and compatibility with virtually all access control and UL325 approved safety devices. All operators are UL325 compliant. Control options include keypad, card reader, push-button consols, loop detectors and remote operatoration interfaces.
