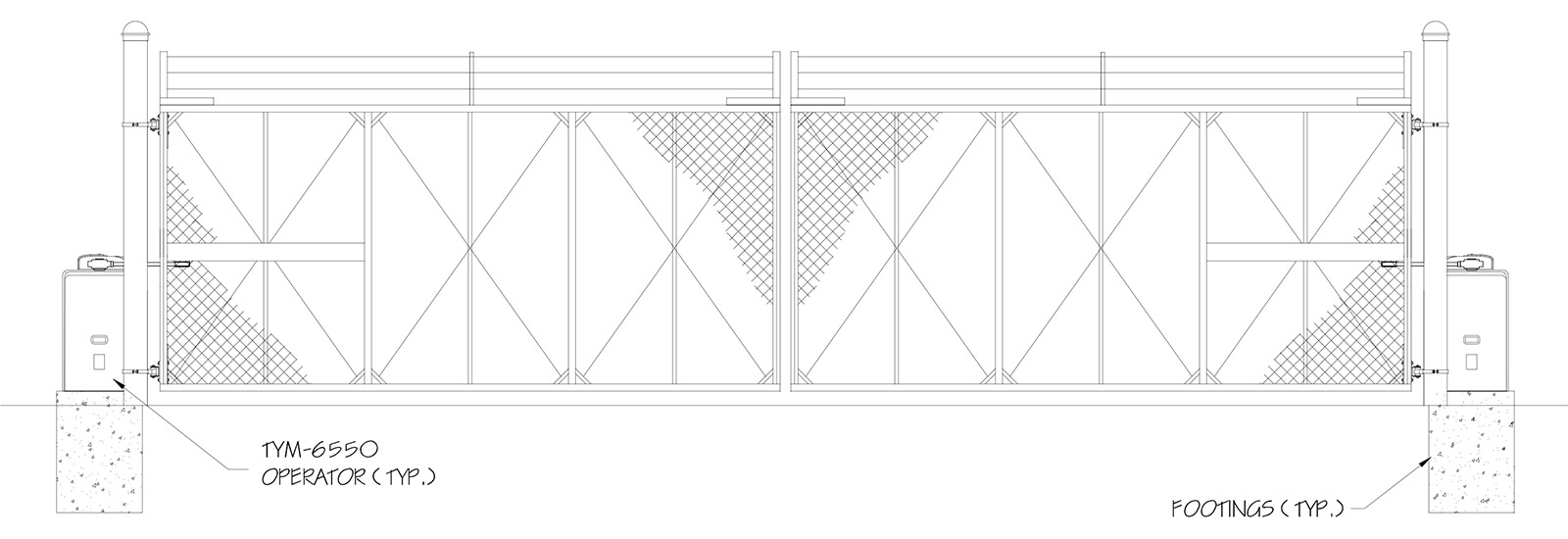

TYM-6550-SW Heavy Duty Swing Gate and Operator System (Actuating Arm)

Product Notes

• Closes single clear opening widths up to 25′ and double clear opening widths up to 50′.
• Actuating arm design is a good match for the Heavy Duty Swing Gate. Low maintenance and quiet operation.
• Reliability and longevity at a moderate price.

Product Summary

When limited space is available to each side of a vehicular opening the TYM-6550-SW Swing Gate and Operator System is a good alternative for commercial, industrial and residential applications. The operator design allows for easy access to the electronics and mechanical areas without having to remove the gate arm. The Heavy Duty Swing Gate is fabricated from thick wall aluminum extrusions and incorporates adjustable reinforcement cables. It and won’t sag or rust.

Features & Benefits

• Maximum gate panel weight: 2000 pounds
• UL 325 and 991 compliant with ETL listing – UL Classes I, II, II and IV
• Rated for continuous duty
• Slow start/stop feature.
• Speed: Open or Close cycle time approximately 12-14 seconds
• Adjustable, no maintenance magnetic limits
• Three 115 VAC convenience outlets for accessory transformers
• Optional battery backup
