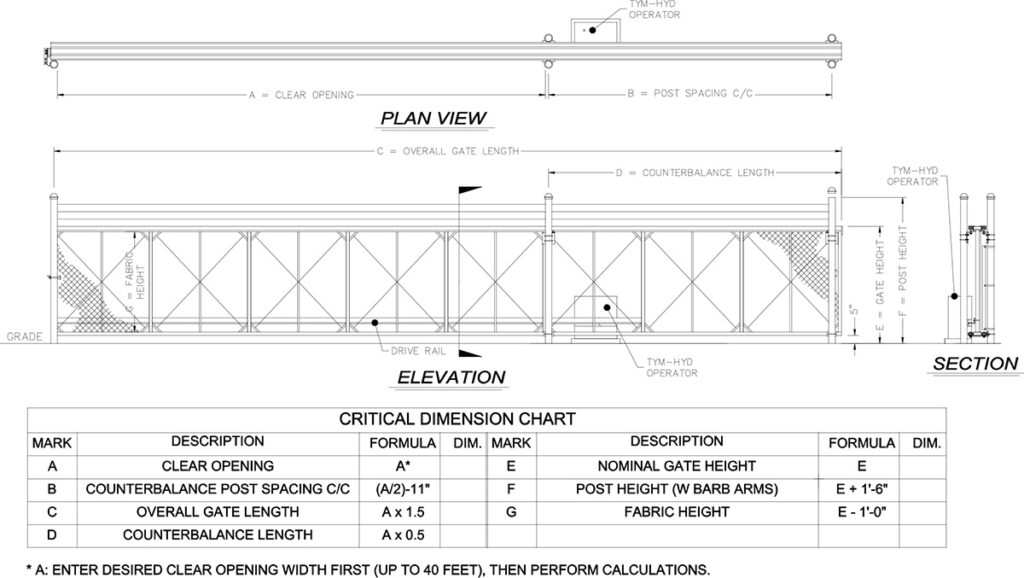

TYM-HYD Structural Cantilever Slide Gate System
Product Notes
- Closes single clear opening widths up to 40 feet and double clear openings up to 80 feet.
- Hydraulic/rail drive operator system.
- Soft start and stop Variable Frequency Drive (VFD).
- Selectable speeds of 2.2 or 3.0 feet per second with Emergency Fast Operation (EFO) feature.
Product Summary
TYMETAL’S Fortress Structural Cantilever Slide Gate is a good match for the TYM-HYD-VF2/3 hydraulic gate operator. TYMETAL has tested and integrated both into available drawings and specifications. Assuming speed is an important criteria, the gate and operator system represents a perfect blend of high performance, state-of-the-art features and reliability.
Technical Data Sheet
Chain Link CAD
Chain Link PDF
Chain Link Specs TYM-HYD VF2/VF3 Gate Operator
The TYM-VF2/3 operator is UL Class III and IV compliant and designed for larger gates weighing up to 5,000 pounds. The variable frequency drive provides a soft start and stop feature that reduces wear and tear on larger gates traveling at higher speeds. The TYM-HYD-VF2/3 operator is a good match for the Box Frame Cantilever Slide Gate, providing performance, reliability, and security.
The Smart Touch Controller
The SmartTouch 725 Controller is the brain of the TYM-HYD-VF2/3 operator and can easily be configured by an installer or user to adapt to nearly any site-specific functional requirement. The controller includes a 32 character OLED display. RS485 and ethernet for network connections are included.
Frequently Asked Questions
TYMETAL has been in the perimeter security solutions market since 1985. With more than three decades of experience designing, manufacturing, and installing the TYM-HYD Structural Cantilever Slide Gate System, we have encountered many questions along the way. Explore a few of the common questions we are asked below. If you don’t find the answers you’re looking for, feel free to contact us by phone at 888-978-4283 or online.
How is the TYM-HYD Structural Gate powered, and what hydraulic components control movement?
The TYMETAL TYM-HYD uses a hydraulic drive system consisting of a hydraulic power unit, cylinder or motor assembly, and control valve package that converts hydraulic pressure into the linear or rotary motion required to open and close the gate. The hydraulic system provides smooth, consistent operating force across the full range of gate travel regardless of temperature or load variation.
What operational advantages does hydraulic actuation provide over chain-driven systems?
Hydraulic actuation delivers higher force output for its size than chain-drive systems, enabling the TYM-HYD to operate heavier gate panels or achieve faster cycle times under load. Hydraulic systems also provide inherent cushioning at the end of travel, reducing mechanical shock, and can be configured with adjustable speed and force settings that are not easily achieved with mechanical drive systems.
Are the hydraulic assemblies protected against fluid leaks or pressure loss?
TYMETAL’s hydraulic gate systems use sealed hydraulic circuits with high-quality seals, fittings, and hose assemblies designed to prevent fluid leaks under normal operating conditions. Pressure relief valves protect the system from over-pressurization, and the power unit reservoir is sized to maintain adequate fluid volume even with minor system losses between service intervals.
What is the maximum operating cycle for high-traffic security facilities?
The TYM-HYD hydraulic gate system is engineered for continuous-duty operation, with hydraulic components selected for high-cycle applications. The specific cycle rate capability depends on the gate size, operator configuration, and thermal management of the hydraulic power unit. Contact TYMETAL for duty cycle specifications matched to your operational requirements.
How should hydraulic fluid and seals be inspected or replaced for optimal performance?
Hydraulic fluid should be sampled and analyzed annually, with full fluid changes performed per the interval specified in TYMETAL’s maintenance documentation — typically every one to three years depending on cycle frequency and operating environment. Seals and hose assemblies should be inspected for weeping or cracking at each service, with replacement performed at the first sign of degradation.
