TYM-VSA Box Frame Cantilever Slide Gate System
Product Notes
- Closes single clear opening widths up to 60 feet and double clear openings up to 120 feet.
- Chain drive with adjustable variable speeds from 1.2 feet to2.2 feet per second.
- 10 gauge motor box with correctional grade lock.
- Manual hand crank for use during power outage.
Product Summary
For those larger applications where security, speed, reliability, and budget are the major considerations, TYMETAL’S Box Frame Cantilever Slide Gate and TYM-VSA operator is the perfect choice. As with all featured TYMETAL gate and operator systems this gate and operator combination has been tested. Drawings and layouts are available; specifications describing the gate and operator system are available as well.

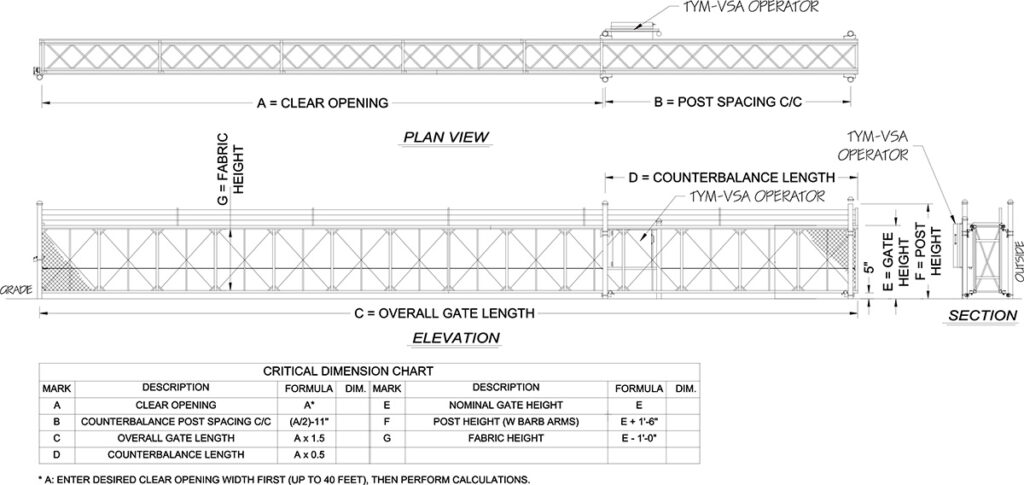

Technical Data Sheet
Chain Link CAD
Chain Link PDF
Chain Link Specs Features & Benefits
- UL325/UL991 compliant
- Capacity: 5000 pounds
- Post mounted for ease of maintenance
- Chain drive; #50 chain
- Continuous duty
- Speeds ranging from 1.2 to 2.2 feet per second; programmable variable speed controller
- Soft start and stop
- 10 gauge hot-dip galvanized steel cabinet with correctional grade lock (powder coated finish optional)
- 24VDC control module
Manual
Click here to download the TYM-VSA Gate Operator manual.
