TCF-M50-P1 (K12)
Product Features
- M50-P1 Crash Tested Cable Fence. Meets ASTM F2656 M50-P1.
Product Summary
Quality, experience, and exceptional service — that’s just the beginning of what you can expect from TYMETAL Corp. TYMETAL’s crash-rated cable fencing can be installed as a “stand alone” barrier or integrated with virtually any commercial fence line to harden your perimeter security. It’s available in ASTM F2656 M30 (K4), M40 (K8) and M50 (K12) crash-rated configurations. We offer a broad range of crash-rated barrier solutions that can be integrated with the crash-rated fence to provide the perimeter security solution you need.
Downloads
Brochure

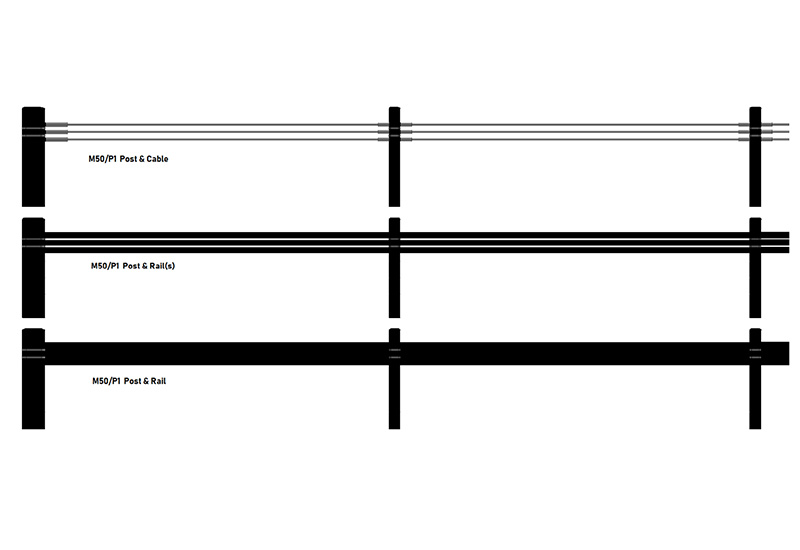

CAD Drawing
PDF Drawing
Specification Types of Crash-Rated Fencing
The TCF-CR-50P1 crash-rated fence meets ASTM F-2656-15 (M50-P1) and is listed on the Department of Defense Anti-Ram Vehicle Barrier List. Install it as a “stand alone” barrier or behind a perimeter fence for a less obtrusive appearance while still maintaining maximum security. Alternatively, choose one of TYMETAL’s finishes and incorporate decorative rail coverings for the cables to achieve a sleek look. It’s also available in ASTM F2656 M30 (K4), M40 (K8) and other M50 (K12) crash rated configurations.
This crash fence can be shipped as hot-dipped galvanized or zinc primed with epoxy paint or powder coated. The selection of finishes allows you to achieve a pleasing aesthetic in any setting, proving that crash-certified fences can also look stylish.
Crash-Rated Fence Features
Our crash-rated fencing provides enhanced safety to protect against crime, attacks, and vehicle accidents to keep your perimeter secure. You can even install crash-rated barrier fencing against non-rated security fences or add crash gates for additional protection.
Crash-rated cable fence from TYMETAL can stop a vehicle weighing 15,000 pounds traveling at 30, 40 or 50 miles per hour (mph). These solutions are designed to provide maximum security, with certified testing to ensure reliability and predictable performance.
Additionally, they are available in various finishes to suit even the most demanding security situations without sacrificing style or aesthetics.
Other features and benefits of TYMETAL’s crash fences include:
- DOD anti-ram vehicle barrier approved
- Crash-test certified to an ASTM F2656 M50-P1 (K12) rating
- Engineered certified ratings: M50-P1, M50-P2, M40-P1, M40-P2, M30-P1, and M30-P2
- Superior quality and design utilizing materials that withstand time and heavy use
- Save time and labor with simple, easy installation and minimal ongoing maintenance
- Cost-effective, long-term maximum-security solution
Crash-Rated Fence Applications
TYMETAL uses high-quality materials to create durable, reliable anti-crash fences and barriers. For more than 35 years, we have designed and manufactured security barrier solutions for all kinds of facilities and applications.
Our high security crash-rated fence offers protection from vehicular attacks or accidents and criminal acts. They are appropriate for facilities and properties that need a higher level of perimeter security, making them ideal for sites such as:
- Military bases
- Government facilities
- Sports complexes
- Airports
- Police stations
- Critical infrastructures, including oil and gas
- Conference centers
- Data centers
Frequently Asked Questions
TYMETAL has been in the perimeter security solutions market since 1985. With more than three decades of experience designing, manufacturing, and installing the TCF-M50-P1 (K12), we have encountered many questions along the way. Explore a few of the common questions we are asked below. If you don’t find the answers you’re looking for, feel free to contact us by phone at 888-978-4283 or online.
What crash test rating does the TCF M50 P1 K12 fence achieve?
The TYMETAL TCF M50 P1 K12 fence system is certified to ASTM F2656 M50/P1 and U.S. DoS K12 standards, the highest vehicle impact rating in TYMETAL’s fence product line. This certification confirms the fence will stop a 15,000-lb vehicle traveling at 50 mph within a penetration distance of 1 meter, making it suitable for the most demanding force protection perimeter applications.
How is the fence constructed to resist vehicle impact?
The TCF M50 P1 K12 fence uses heavy structural steel posts embedded in deep reinforced concrete foundations, with the rail and panel system engineered to transfer the full kinetic energy of a K12-rated vehicle strike into the ground. Post spacing, embedment depth, and foundation reinforcement are all specified to achieve certified performance rather than standard fencing practices.
Can this crash-rated fence integrate with security gates or perimeter systems?
Yes. TYMETAL designs the TCF M50 P1 K12 fence to integrate with matching K12-rated gate systems including the TCG-12 cantilever slide gate and TCSG-12 swing gate, creating a uniformly rated perimeter without weak points at access openings. The fence and gate systems share compatible post and foundation systems for consistent installation.
What annual inspection protocols apply?
Annual inspections should verify the structural integrity of all posts, rail connections, and foundation anchors, checking for corrosion, damage, settlement, or loosening of fasteners. Any section exposed to vehicle impact must be inspected and certified before being considered operational. TYMETAL recommends maintaining inspection records to support ongoing compliance documentation.
